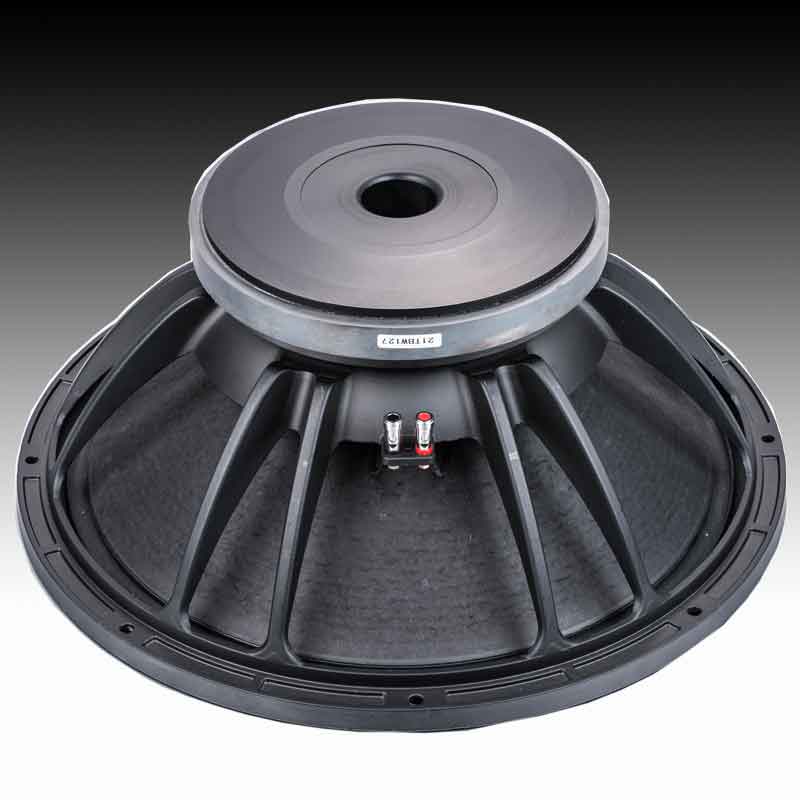

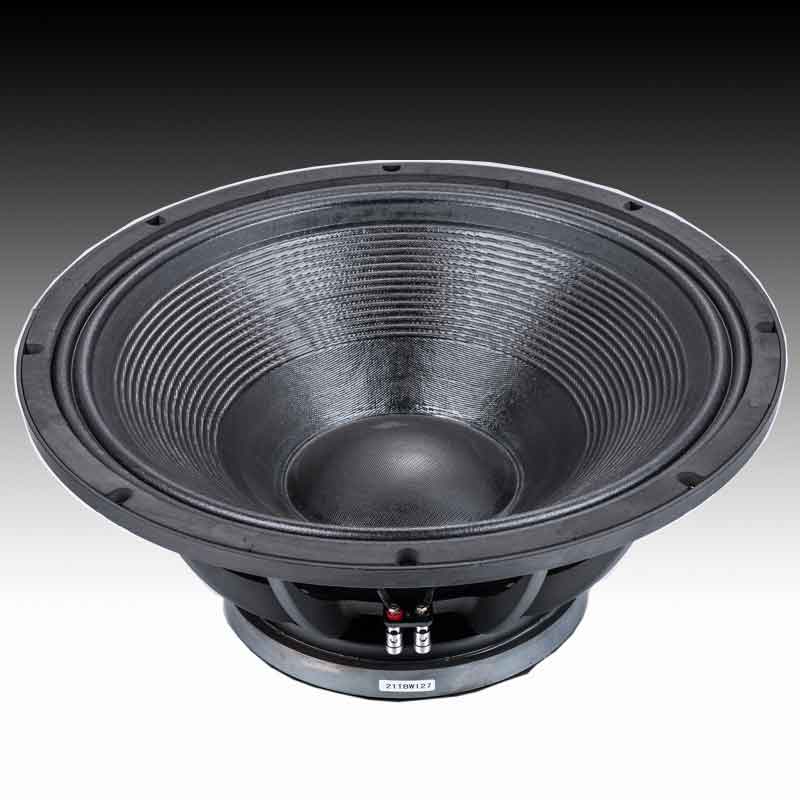

General  Specification 21TBW127
Norminal Diameter : 540mm/21inch
Power Rating : 1500W
Norminal Impedance : 8Ohm
Sensitivity : 96dB
Frequency Range : 35Hz-2kHz
Chassis Type: Aluminium
Magnet Type: Ferrite Magnet
Magnet Weight : 150 OZ250*140*25
Voice Coil ; 5"/130MM
Coil Material SV,Inside-out
Voicecoil Winding Width: 25mm
Cone/Surround Material : Paper/Cloth
Suspension : Double Spider
X-mas: ±6.0mm
N/G  Weight 30.6/34.6kg
Dimension WxDxH 60x60x30cm
