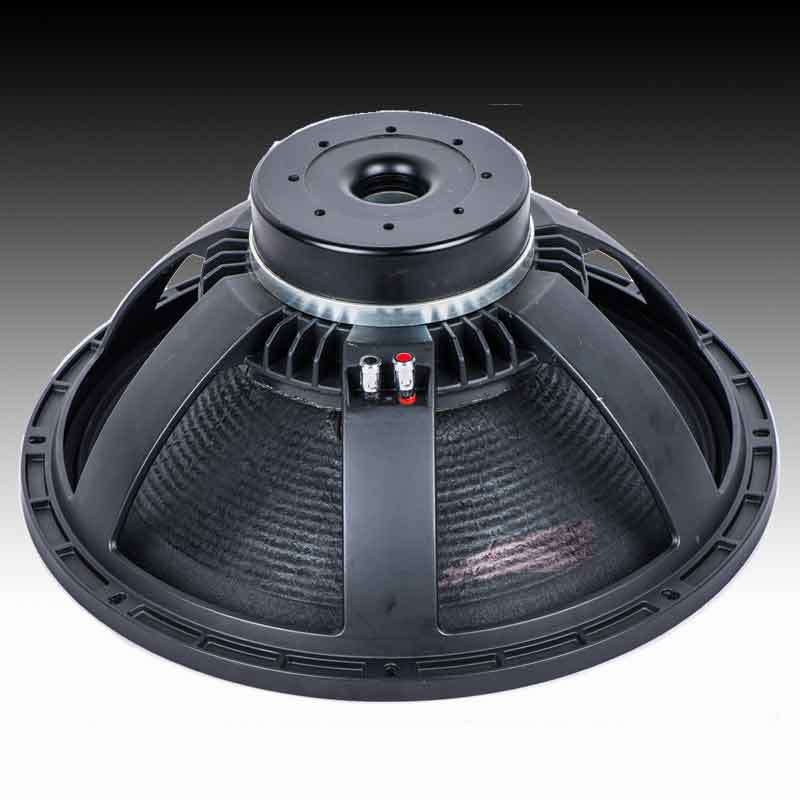

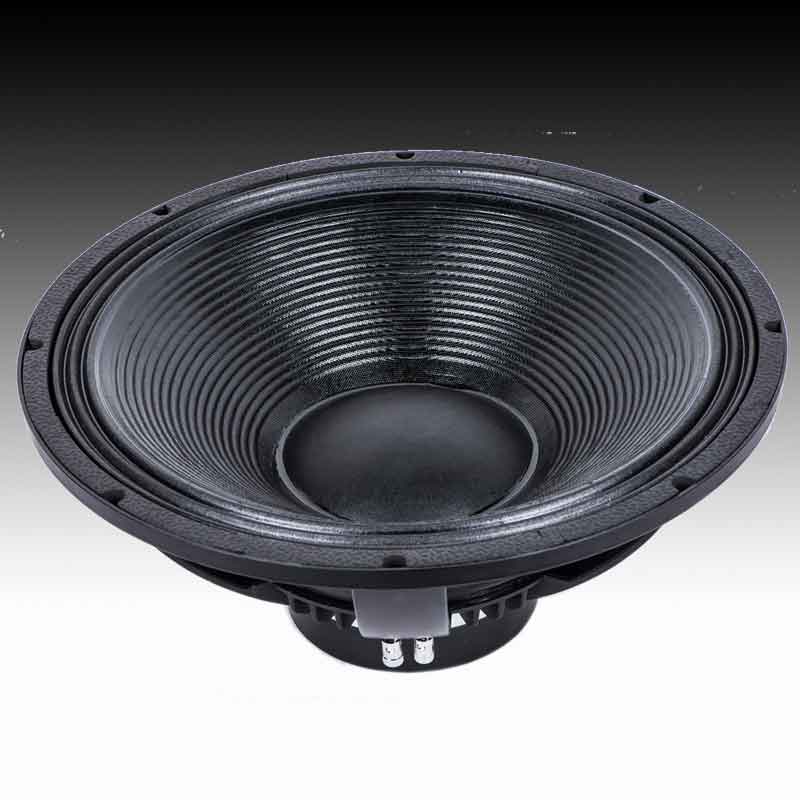

General  Specification 15NW100 18NW100
Norminal Diameter : 394mm/15inch 465mm/18inch
Power Rating : 600W 800W
Norminal Impedance : 8Ohm 8Ohm
Sensitivity : 98dB 97dB
Frequency Range : 40Hz-3.5kHz 35Hz-3kHz
Chassis Type: Aluminium Aluminium
Magnet Type: Neodymium  Magnet Neodymium  Magnet
Magnet Weight : 90*14mm 90*14mm
Voice Coil ; 4"/99.2mm 4"/99.2mm
Coil Material SV,Inside-out SV,Inside-out
Voicecoil Winding Width: 23mm 23mm
Cone/Surround Material : Paper/Cloth Paper/Cloth
Suspension : Double Spider Double Spider
X-mas: ±6.0mm ±6.0mm
N/G  Weight 13/14kg 16/18kg
Dimension WxDxH 44x44x25cm 51x51x27cm


Pervious: 21TBW127       Next: 15PS76-C / 18PS76-C
