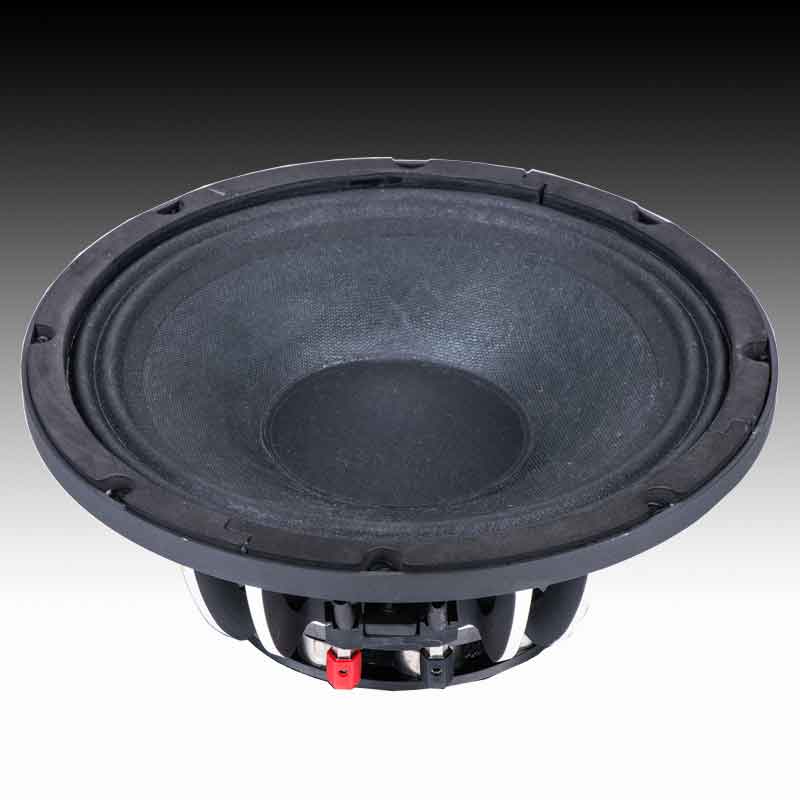

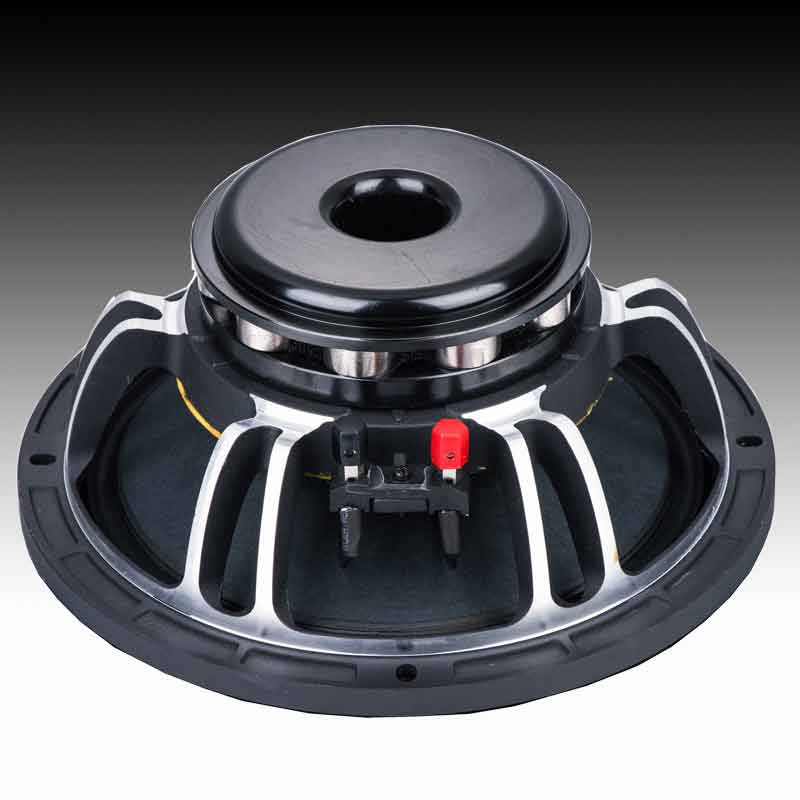

General  Specification 10N65
Norminal Diameter : 261mm/10inch
Power Rating : 250W
Norminal Impedance : 8Ohm
Sensitivity : 97dB
Frequency Range : 50Hz-3.5kHz
Chassis Type: Aluminium
Magnet Type: Neodymium
Magnet Weight : 25*12  *10  N40
Voice Coil ; 2.5"/65mm
Coil Material CCAW
Cone/Surround Material : Paper/Cloth
Suspension : Double Spider
X-mas: ±6.0mm
N/G  Weight 4.2kg/5.2kg
Dimension WxDxH 28*28*16CM
