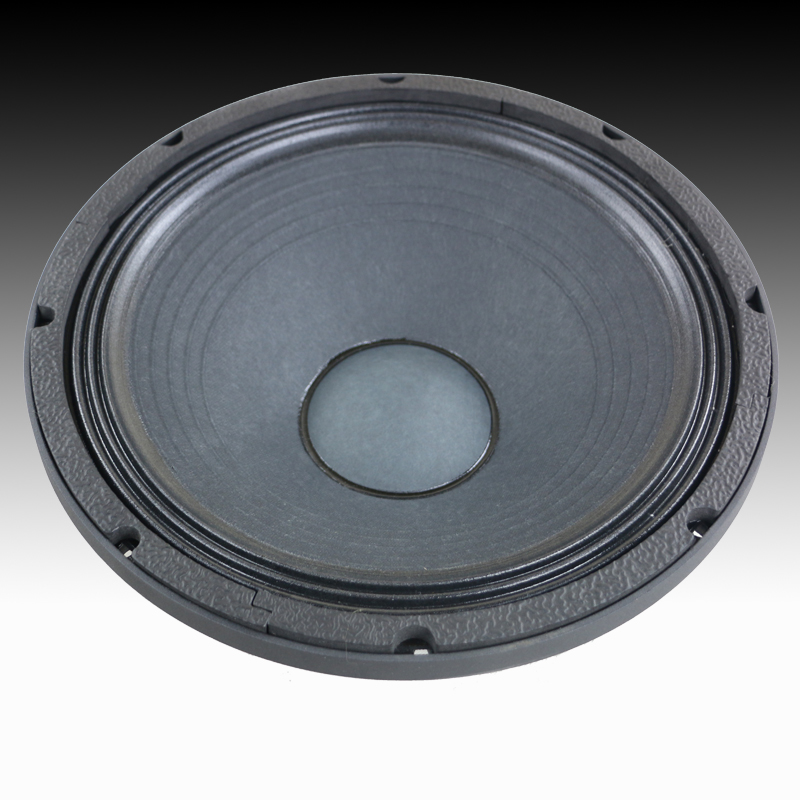

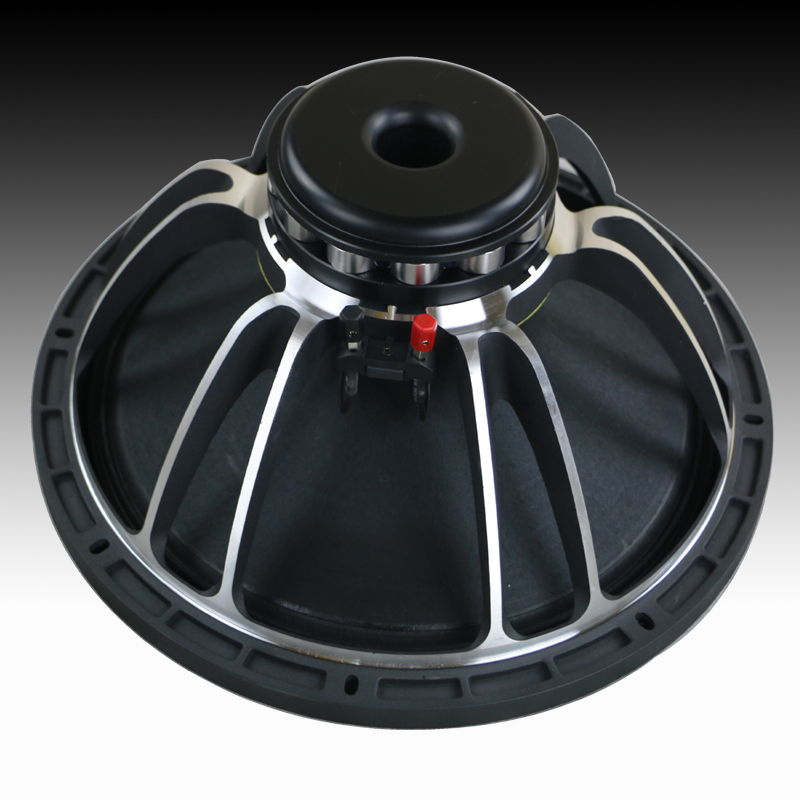

General  Specification 12N76 15N76
Norminal Diameter : 315mm/12inch 393mm/15inch
Power Rating : 300W 400W
Norminal Impedance : 8Ohm 8Ohm
Sensitivity : 97dB 98dB
Frequency Range : 50Hz-5kHz 45Hz-5kHz
Chassis Type: Aluminium Aluminium
Magnet Type: Neodymium Neodymium
Magnet Weight : 25*12  *12  N40 25*12  *12  N40
Voice Coil ; 3"/75.8mm 3"/75.8mm
Coil Material CCAW CCAW
Former Material : Glass Fiber Glass Fiber
Voicecoil Winding Width: 18mm 18mm
Cone/Surround Material : Paper/Cloth Paper/Cloth
Suspension : Single Spider Single Spider
X-mas: ±4.0mm ±4.0mm
N/G  Weight 3.5/4.5kg 4.6/5.6kg
Dimension WxDxH 37x37x22cm 44x44x25cm
