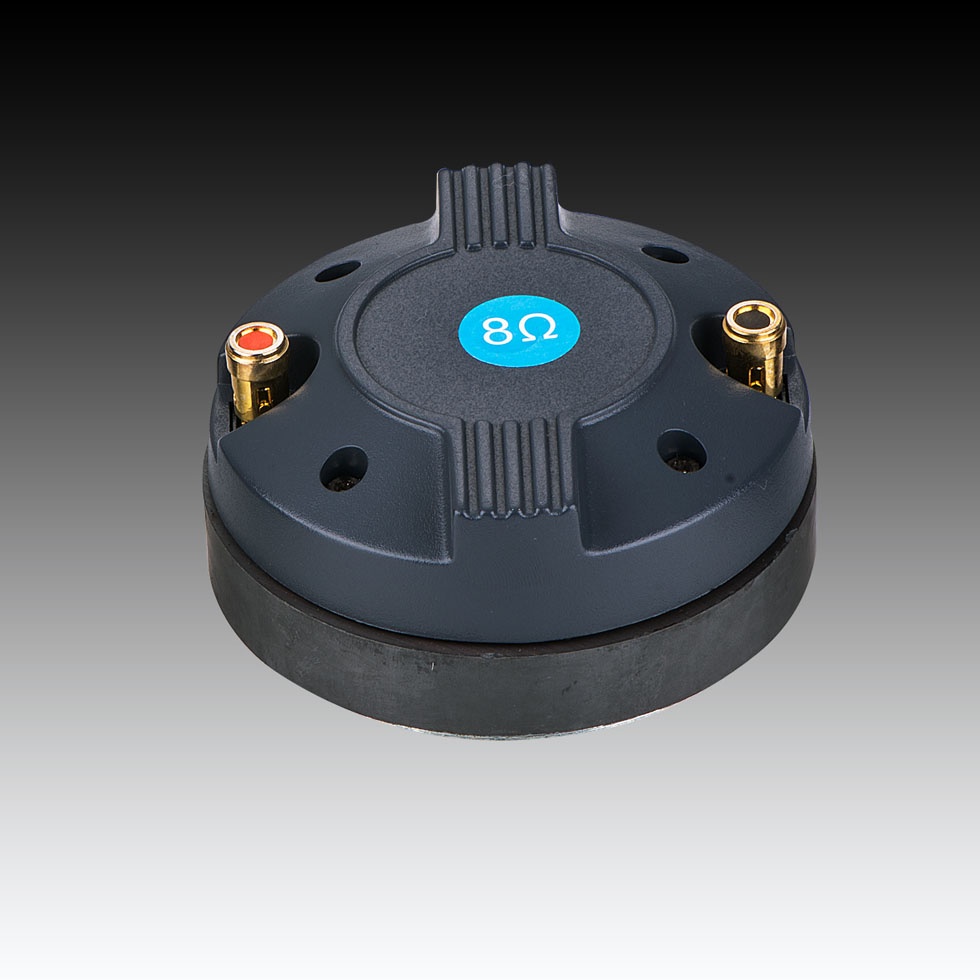

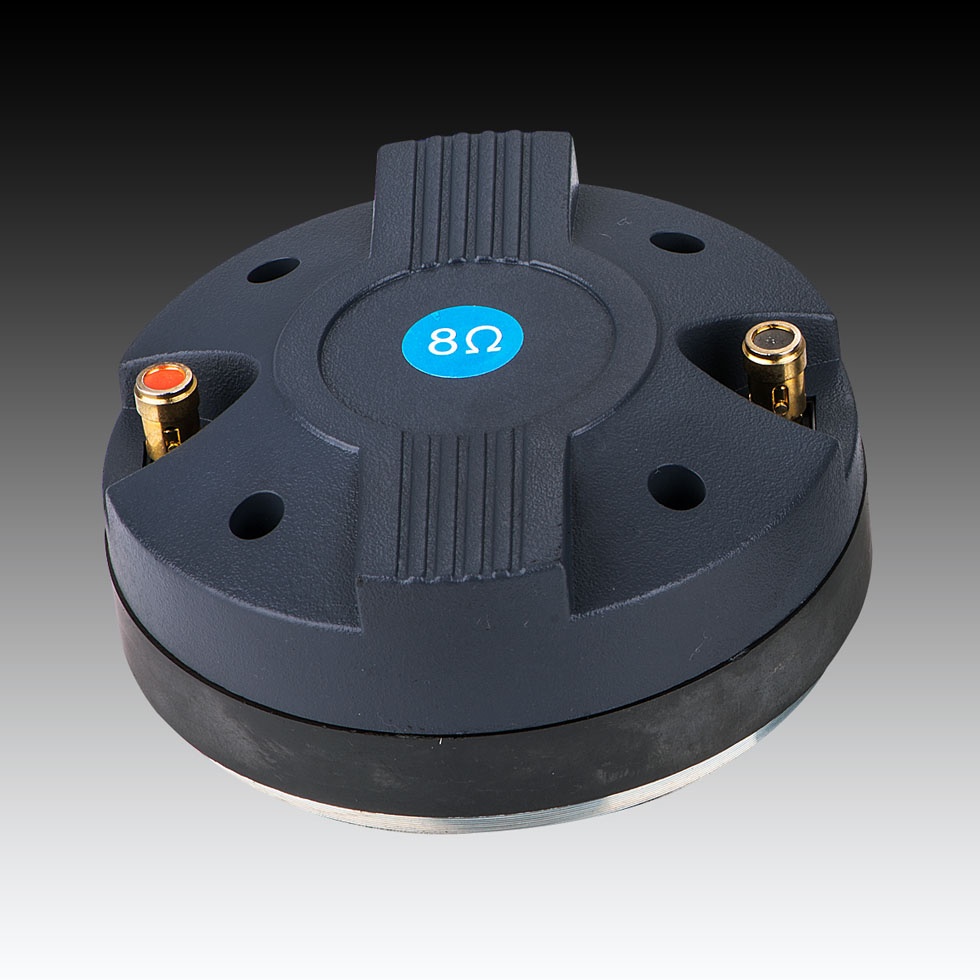

Your Location: Home > HF Driver > HF34A / HF44AProducts


SPECIFICATION HF34A HF44A
Nominal impedance 8ohm(AC) 8ohm(AC)
Power capacity 35W 60W
Frequency Range 600Hz-20kHz 600Hz-20kHz
Sensitivity 110db/m.w 110db/m.w
Diaphragm material Titanium Titanium
Voice coil Kapton34.4mm(1.36") Kapton44.4mm(1.75")
Magnet 13oz 23oz
Throat 25mm(1") 25mm(1")
Outer carton 30*20*17cm 37*25*10cm
Pcs/carton 12pcs 6pcs
G.W/N.W 12/11kg 11/10kg



Pervious: HF25A       Next: HF50B
