General  Specification 15PS100-C 18PS100-C

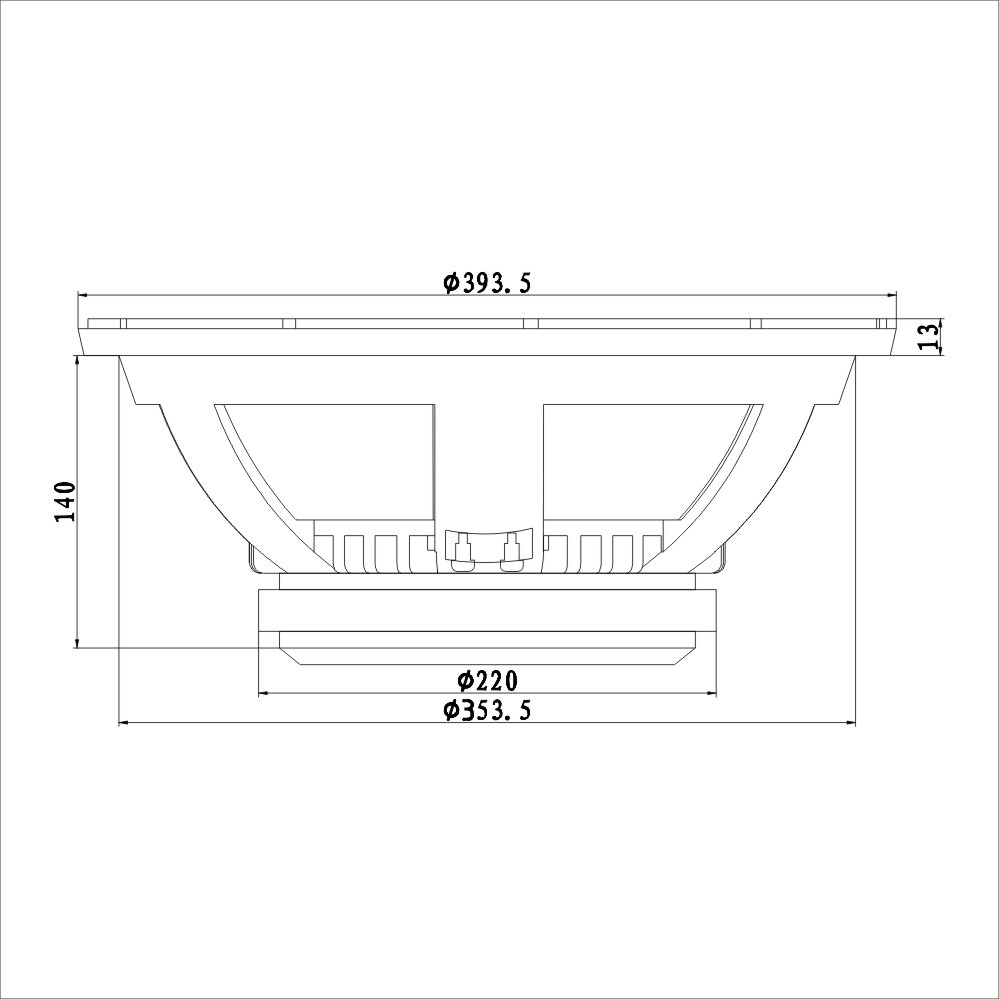

Norminal Diameter :    393mm/15inch 460mm/18inch
Power Rating :        500W 1000W
Norminal Impedance :  8Ohm 8Ohm
Sensitivity :      97dB 98dB
Frequency Range :    38Hz-3kHz 35Hz-2kHz
Chassis Type: Aluminium Aluminium
Magnet Type:    Ferrite Magnet Ferrite Magnet
Magnet Weight :     220x110x20mm/100OZ 220x110x25mm/125OZ
Voice Coil ;    4"/99.2mm 4"/99.2mm
Coil Material    SV,Inside-out SV,Inside-out
Former Material :    Glass Fiber Glass Fiber
Voicecoil Winding Width:    21mm 25mm
Cone/Surround Material :     Paper/Cloth Paper/Cloth
Suspension :   Double Spider Double Spider
X-mas:     ±6.0mm ±8.0mm
N/G  Weight  9.8/10.8kg 12.4/13.8kg
Dimension WxDxH 44x44x25cm 51x51x27cm
Thiele & Small Parameters
Re  5.3Ohm 5.3Ohm
Fs 38Hz 38 Hz
Mms 145g 209 g
Mmd 136 186
Qms 4.8 7.2
Qes 0.36 0.39
Qts 0.34 0.37
Vas 152lt 212 lt
BL 22.5 Tm 25.5 Tm
SD 0.09m2 0.122 m2
Features
  1000 Watts  Max Power Handling 2000 Watts  Max Power Handling
  Ferrite Magnet Ferrite Magnet
  Double Spider Suspension Double Spider Suspension
  Die Cast Aluminium Chassis Die Cast Aluminium Chassis
