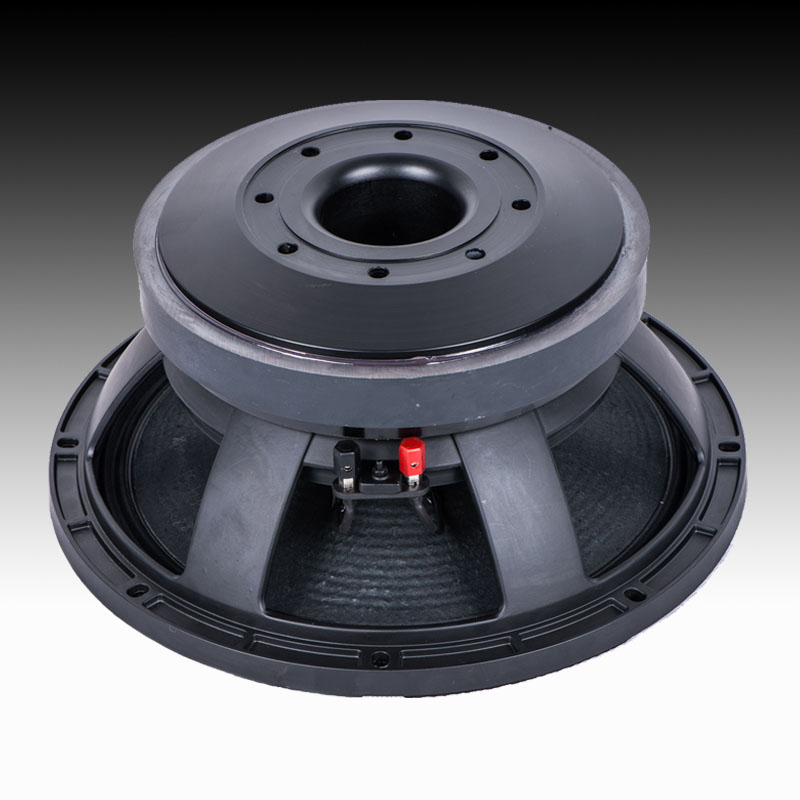

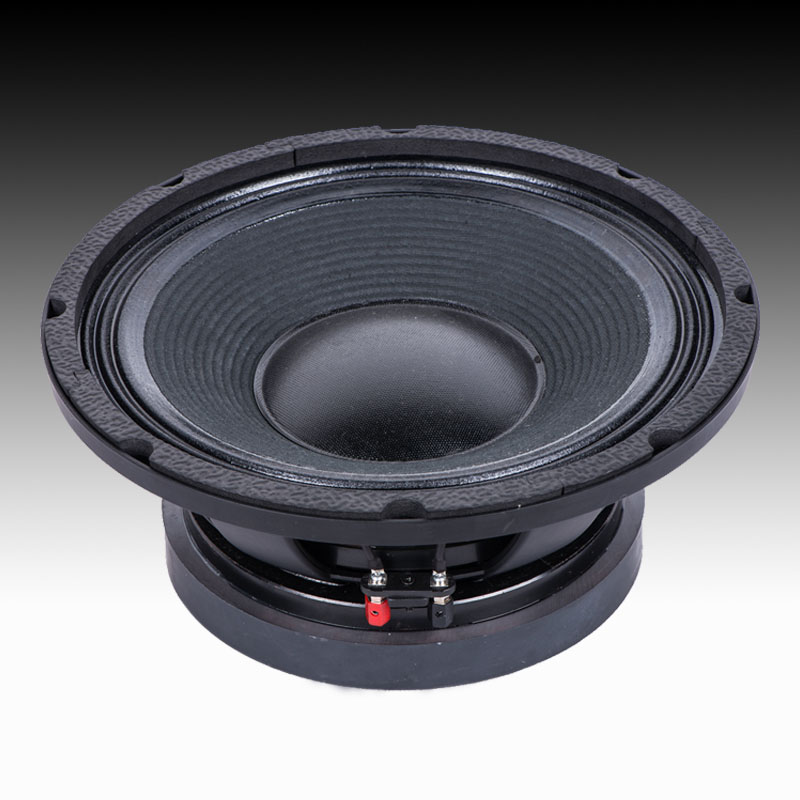

General  Specification 12TBX100
Norminal Diameter :    12 inch
Power Rating :        600W
Norminal Impedance :  8Ohm
Sensitivity :      96dB
Frequency Range :    45Hz-2kHz
Chassis Type: Aluminium
Magnet Type:    Ferrite Magnet
Magnet Weight :     220x110x25mm/125OZ
Voice Coil ;    4"/99.2mm
Coil Material    SV,Inside-out
Former Material :    Glass Fiber
Voicecoil Winding Width:    16mm
Cone/Surround Material :     Paper/Cloth
Suspension :   Double Spider
X-mas:     ±3.0mm
N/G  Weight  11/13 kg
Dimension WxDxH 37x37x22cm
Thiele & Small Parameters
Re  5.3 Ohm
Fs 59 Hz
Mms 66 g
Mmd 56
Qms 11
Qes 0.39
Qts 0.37
Vas 45 lt
BL 19.5Tm
SD 0.053 m2
N/G  Weight  11/13 kg
Dimension WxDxH 37x37x22cm

Features
1200 Watts  Max Power Handling
Ferrite Magnet
Double Spider Suspension
Die Cast Aluminium Chassis
