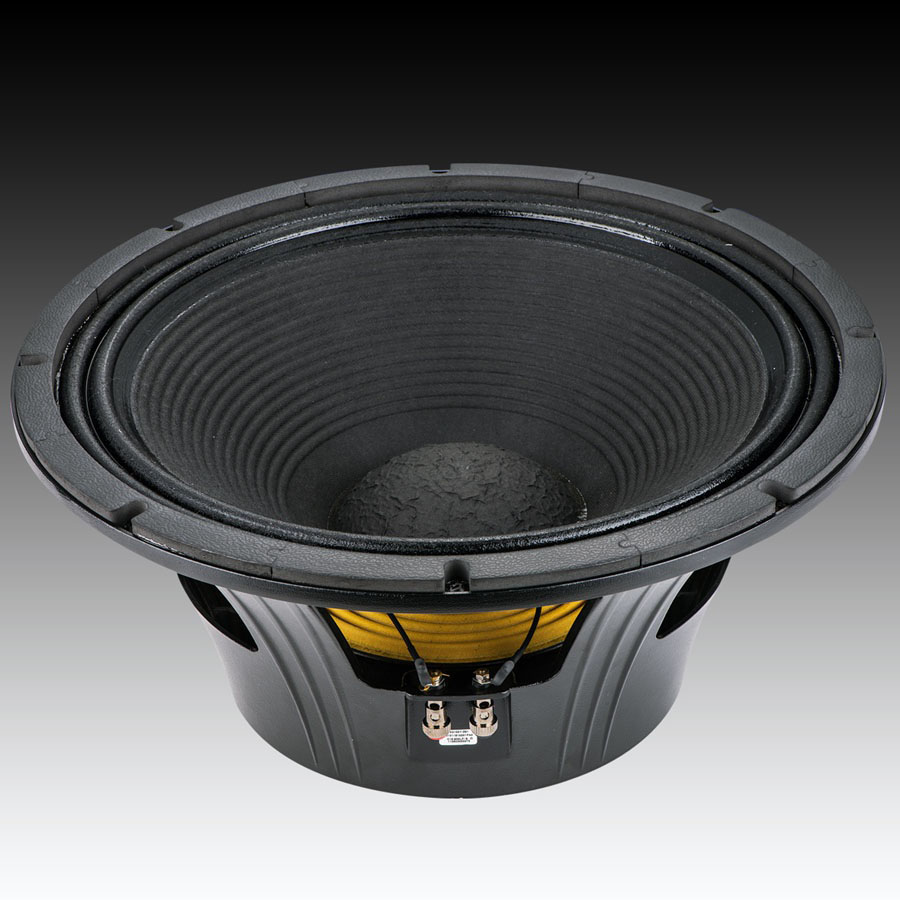

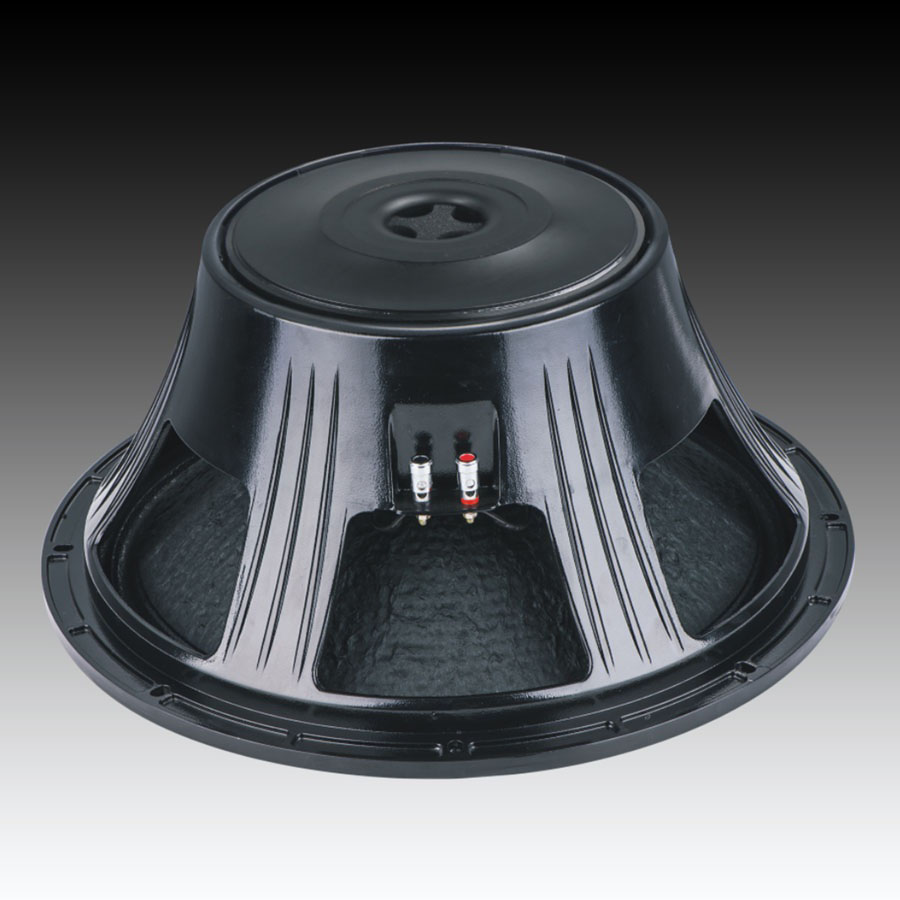

General  Specification P180/2241
Norminal Diameter :    476mm/18inch
Power Rating :        1000W
Norminal Impedance :  8Ohm
Sensitivity :      97dB
Frequency Range :    36Hz-2kHz
Chassis Type: Aluminium
Magnet Type:    Ferrite Magnet
Magnet Weight :     220x110x25mm/125OZ
Voice Coil ;    4"/99.2mm
Coil Material    SV, Inside -out
Former Material :    Glass Fiber
Voicecoil Winding Width:    25mm
Cone/Surround Material :     Paper/Cloth
Suspension :   Double Spider
X-mas:     ±6.0mm
N/G  Weight  12/13kg

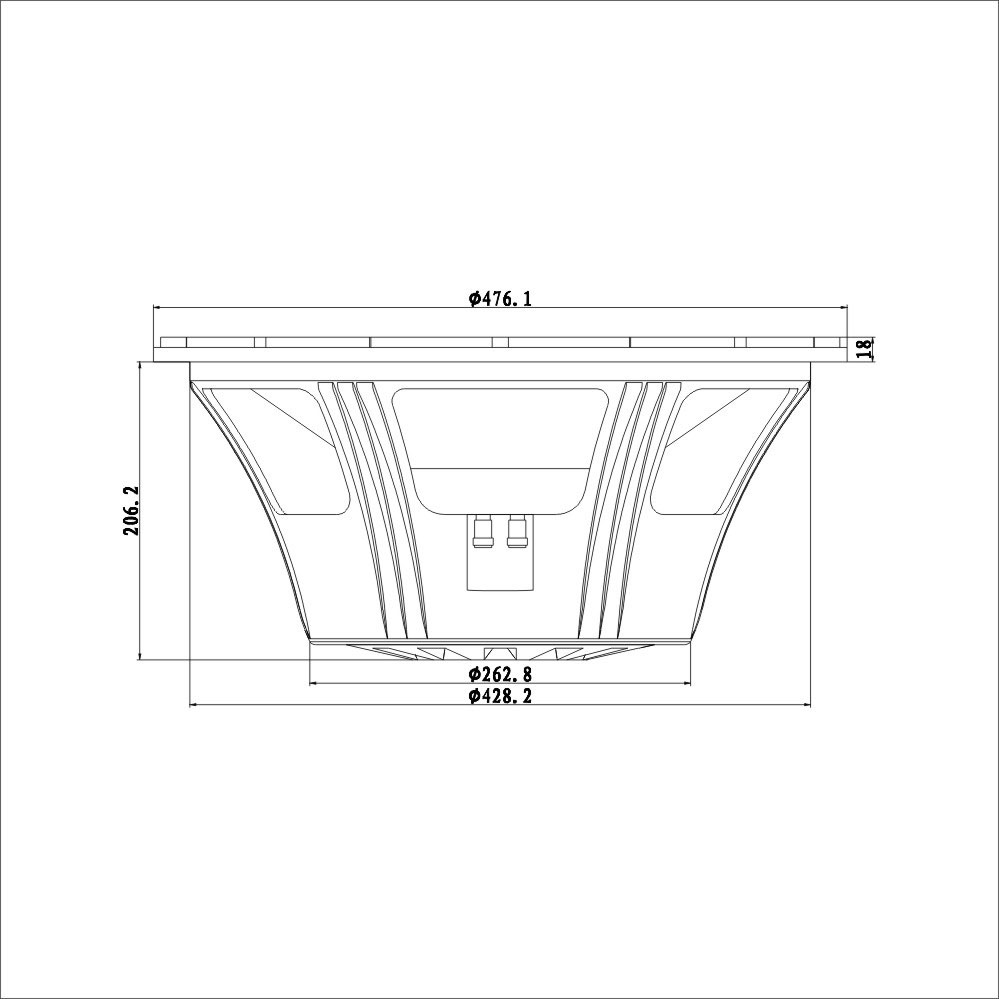

Dimension WxDxH 51x51x27cm
Thiele & Small Parameters
Re  5.3Ohm
Fs 36Hz
Mms 159g
Mmd 140
Qms 6
Qes 0.65
Qts 0.56
Vas 232 lt
BL 17.8 Tm
SD 0.133m2
Features
2000 Watts  Max Power Handling
Ferrite Magnet
Double Spider Suspension
Die Cast Aluminium Chassis
